Drawing tools

Select, move and pan

Move around the canvas, select the right object, and make precise changes to its shape and size without disturbing the map.

Select an object · S

Choose the arrow tool or press S. Click a space, wall, path, marker or decoration to select it, or choose its row in Objects. The selected shape has a blue outline and handles; the right panel shows its properties.

Selection connects the object list, blue canvas outline and Geometry inspector.
  1. Use Find an object to locate a named place when the canvas is crowded.
  2. Choose its row, then open Details if the properties panel is hidden.
  3. Use Escape in Select mode to clear the selection. Selection itself does not change the draft.

Pan and zoom without moving objects

ControlResult
Pan · H, then dragMove your view across the canvas.
Space + dragPan temporarily while another drawing tool is active.
Middle mouse button + dragPan without switching tools.
Mouse wheel / + and − controlsZoom in or out.
F / Fit controlFrame the current floor’s content.
+ or − with canvas focusZoom using the keyboard.

Move and resize accurately

  1. Select the object and drag its body to move it. Snapping aligns the object’s own corners or edges, rather than the point where you grabbed it.

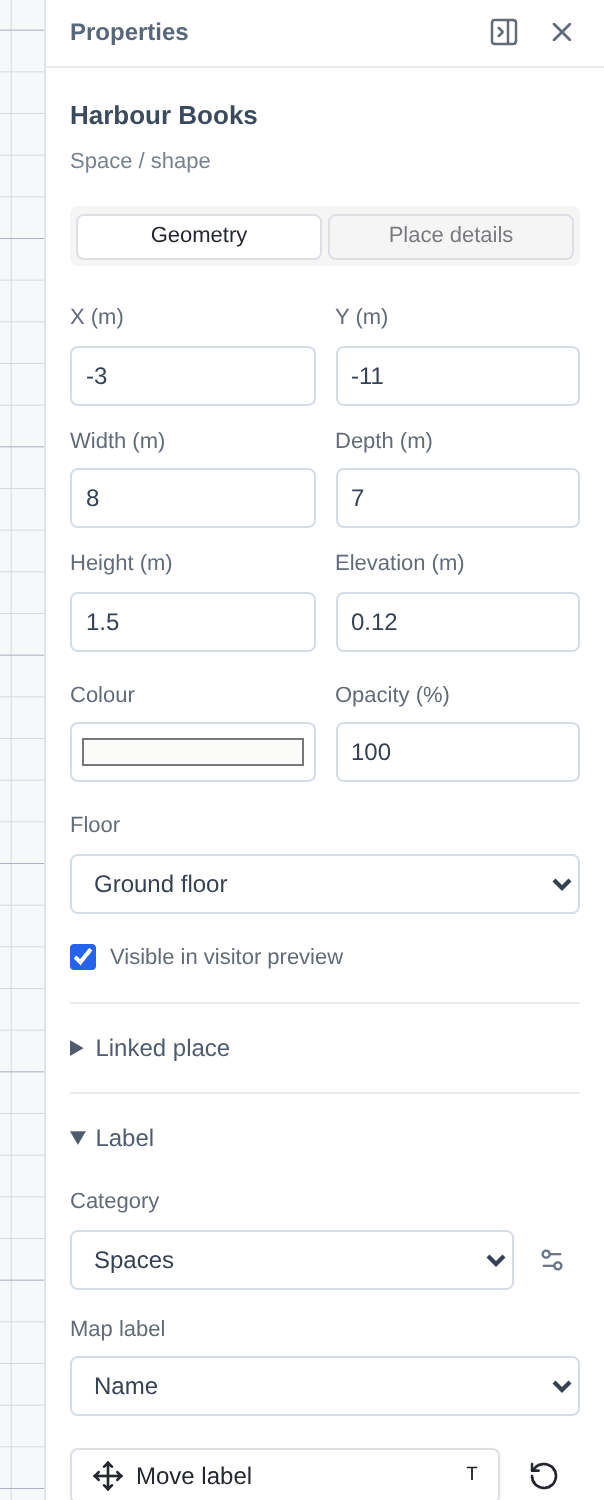

  2. For exact changes, edit X (m), Y (m), Width (m) or Depth (m) in Geometry. Press Enter or leave the field to apply the value.
  3. With the canvas focused, nudge a selection using ↑ / ↓ / ← / →. Hold Shift for a larger step.
  4. Use Undo if the move or resize is not right. Save after completing your changes.
Width and Depth change the footprint. Height changes extrusion; Elevation raises the object above its floor.

Resizing a shape also transforms its label position and curved edges. A wall exposes wall-specific measurements instead of the same dimensions as a rectangular space. Its displayed length follows the path when it is curved.

Rotate on the canvas

  1. In Select, choose a shape, wall, path or decoration. Drag the round arrow handle outside its outline to rotate around its centre. The handle turns with the object and stays attached to the same part when you release or select it again. It stays the same size as you zoom.
  2. Hold Shift for 15° steps. For decorations this snaps the Rotation value; for drawn geometry the steps start from its orientation at the beginning of the drag. Hold Alt to bypass snapping.
  3. Release to apply the rotation, or press Escape to cancel. One drag is one Undo step. Curves, holes and the object's label turn together.
  4. For keyboard editing, focus the rotation handle and use ← / → for 1° turns or Shift + ← / → for 15°. Enter or Space makes a 90° turn. Geometry still offers the quarter-turn button and exact decoration Rotation field.

Rotation handles appear in Select mode when you can edit. Switch out of label or point editing to rotate the whole object. POI icons stay upright; reference images keep their own rotation handle.

Duplicate or delete a selection

  1. Press Ctrl / ⌘ + D to duplicate the selected object. The copy is offset so it does not exactly cover the original.
  2. Move the copy into position and change its place name. The copy has independent place information.
  3. In Select mode, Delete or Backspace removes the selected object. Undo restores it.

When a drag does not do what you expect

  • If the whole view moves, check that Pan or Space is not active. Press S to select.
  • If an object jumps towards nearby edges, hold Alt for free placement or adjust the snapping toggles.
  • A locked reference image or guide cannot be dragged; select its list row and unlock it first.
  • If you can inspect but not edit, check your workspace role. Viewer access does not allow drawing changes.
